Gas Flow Sensor
Gas Flow Sensor

3d modeled from 2D drawings, rendered in Keyshot, printed in 5 colors and 2 materials and 2 technologies via in house and third part capabilities.

Gas Flow Sensor
Gas Flow Sensor

3d modeled from 2D drawings, rendered in Keyshot, printed in 5 colors and 2 materials and 2 technologies via in house and third part capabilities.

 We created a 3D model of this product from 2D drawings and photos.  It was then printed in multiple parts on two different types of printers.  The green internal array was on one type and the rest of the parts were on another.  This view shows the honeycomb gas flow straightener.

We created a 3D model of this product from 2D drawings and photos.  It was then printed in multiple parts on two different types of printers.  The green internal array was on one type and the rest of the parts were on another.

This view shows the honeycomb gas flow straightener.

Gas flow sensor, 3d print
Gas flow sensor, 3d print

We created a 3D model of this product from 2D drawings and photos.  It was then printed in multiple parts on two different types of printers.  The green internal array was on one type and the rest of the parts were on another.

This view shows the sensor array (green) and the venturi "funnel" (orange).

Gas Flow Sensor scale model print
Gas Flow Sensor scale model print

We created a 3D model of this product from 2D drawings and photos.  It was then printed in multiple parts on two different types of printers.  The green internal array was on one type and the rest of the parts were on another.

This model includes 3D printed working nuts and bolts

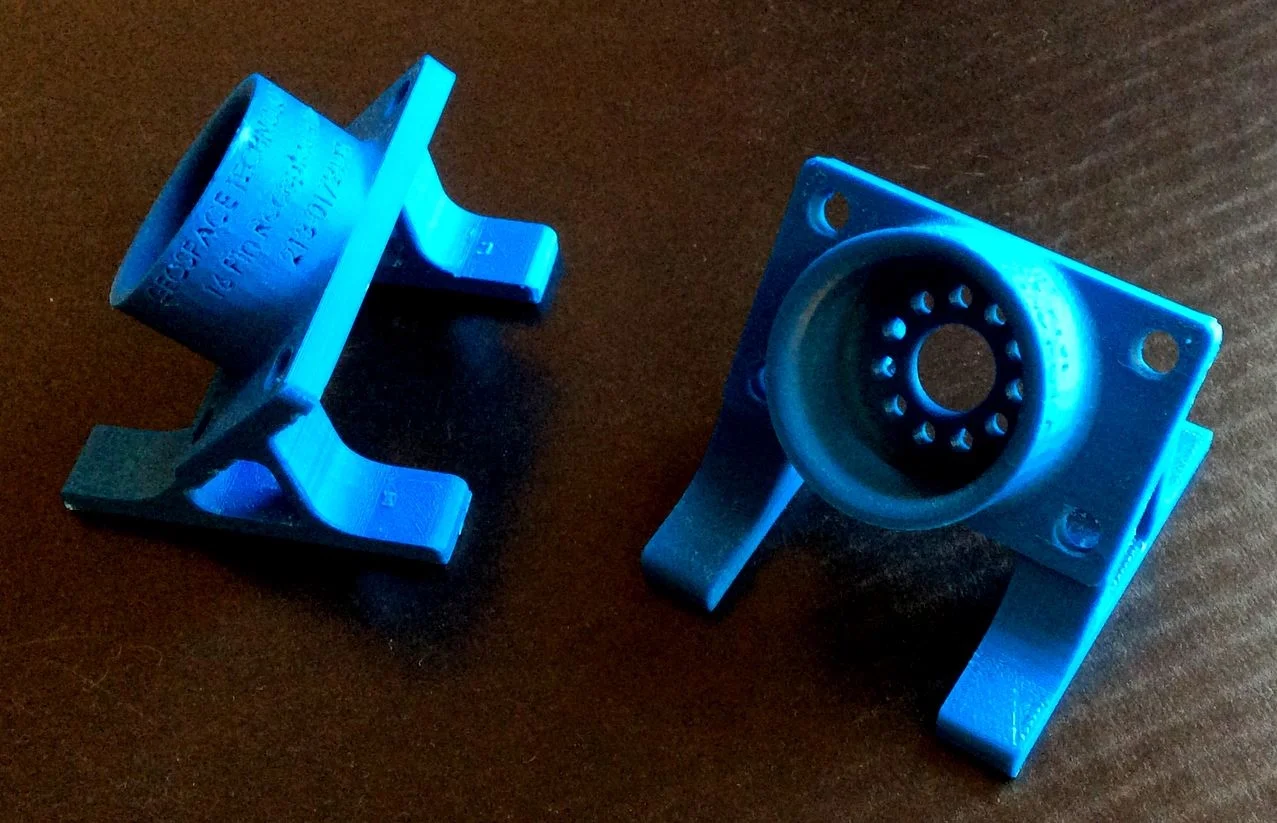

16 Pin Connector Mount
16 Pin Connector Mount

Printed at high resolution (0.1mm layers) in blue ABS, this part is smooth as silk.

Full scale print of hip from CT scan
Full scale print of hip from CT scan

This model was generated from a CT scan of a client's hip. The CT data was processed into a 3D file and printed in a sandstone like material at full scale.  This is the real print, not a rendering.

Hip CT scan image
Hip CT scan image

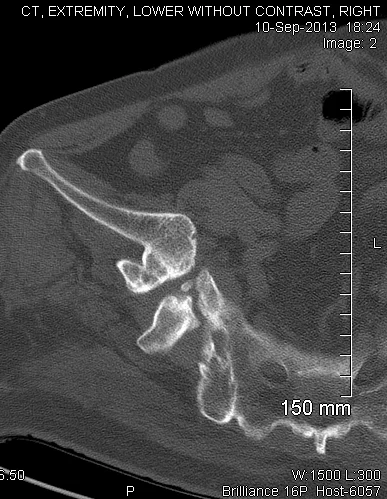

This is an image from a DICOM file that contained multiple images of a damaged hip.  It was used to construct a 3D model of the customer's hip.

3D hip rendering from DICOM
3D hip rendering from DICOM

This 3D model was developed from CT scan data from a patient's right hip.  The model is being printed full size in a bone like material. It will be used to educate the patient and consult with doctors.

180 degree rachet mount
180 degree rachet mount
Mount
Mount

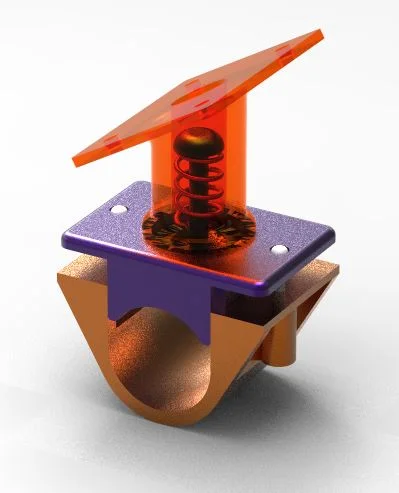

30 degree angle, spring actuated 180 degree rotation mount

Custom reading lamp light diffuser
Custom reading lamp light diffuser

Includes slots for flexible fit, holes to allow air circulation, and internal design to spread light.  This was designed to be added to an LED desk lamp which was too bright.

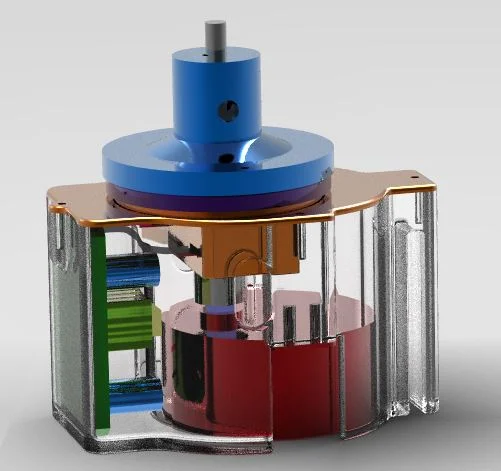

Motor assembly with rotating electrical contacts
Motor assembly with rotating electrical contacts

Created 3d CAD models for prototype printing of new version of motor assembly prior to production in China.

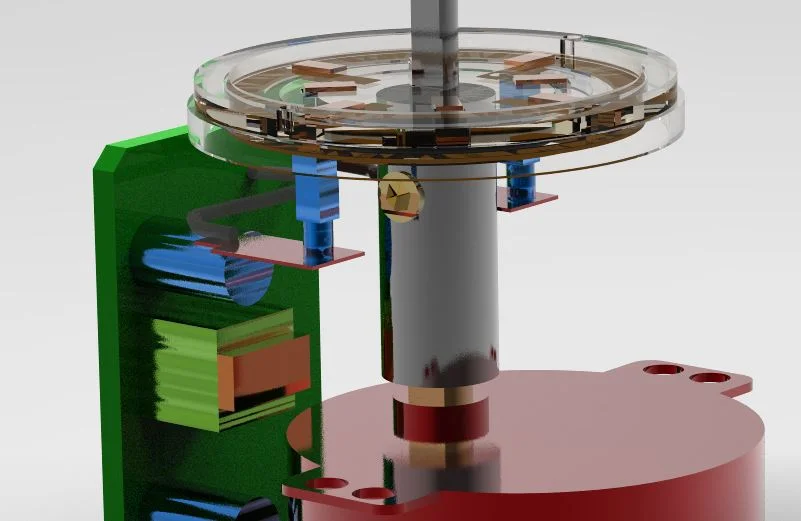

Rotating power transfer assembly.
Rotating power transfer assembly.
Salt dome storage cavern scale model
Salt dome storage cavern scale model

Created from a Sonar derived point cloud and 3D printed. This is a model of a 900 foot tall  by 300 ft storage cavern hollowed out of a salt dome along the Texas coast.  The model was printed in ceramic for presentation to a client.

Keyshot Rendering of 3D model
Keyshot Rendering of 3D model

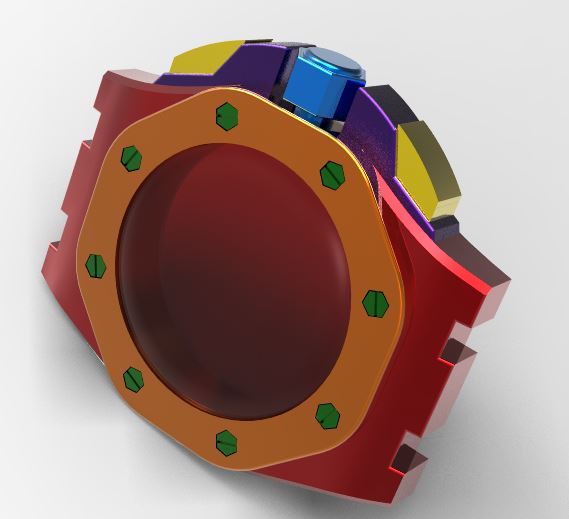

This project was designed for a gallery which produces collectibles. This was modeled based on photos of a real watch.  The model can be printed in pieces or as a single piece. It is 10 inches at full size.

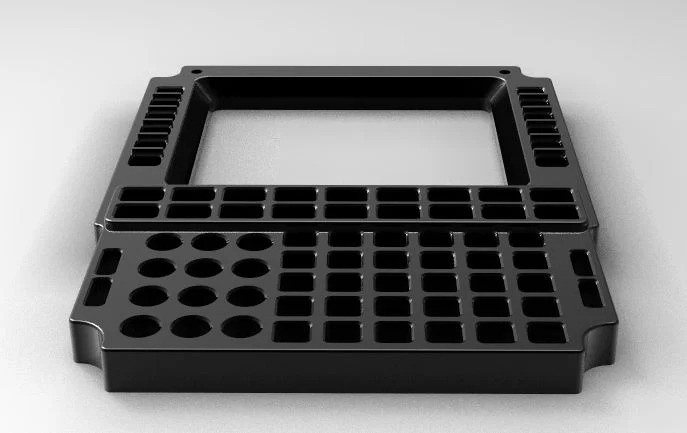

Aircraft instrument panel bezel
Aircraft instrument panel bezel

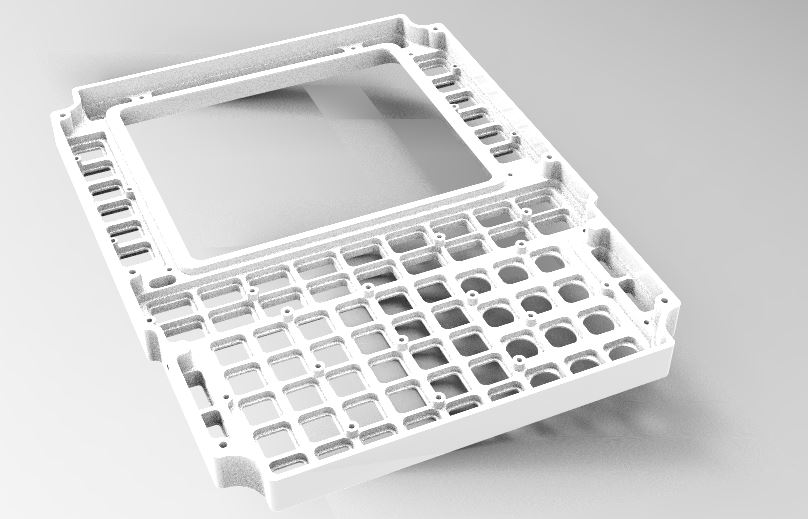

This model was 3D printed for a defense subcontractor at full scale in a photo cured resin.  The purpose of the print was to be used for Human Factors testing in a mocked up cockpit.  The client was told that the customer saved $15,000 by having access to the quickturn model. Two versions were printed one like this which was assembled with electronics and mechanical parts after painting, and a second with all detail on this face filled in.

Aircraft bezel prototype model
Aircraft bezel prototype model

This model was 3D printed for a defense contractor at full scale in a photo cured resin.  The purpose of the print was to be used for Human Factors testing in a mocked up cockpit.  The client was told that the customer saved $15,000 by having access to the quickturn model.

Wixel Pololu Enclosure, modeled and printed
Wixel Pololu Enclosure, modeled and printed

This was for a client who needed an enclosure designed for this wireless USB board.  We designed it to fit a model of the board we created from online specs and the actual board and printed in white and translucent plastic.

Wixel Pololu board enclosure
Wixel Pololu board enclosure

This was for a client who needed an enclosure designed for this wireless USB board.  We designed it to fit a model of the board we created from online specs and the actual board and printed in white and translucent plastic.

Defeatured Model for Demo
Defeatured Model for Demo

This is a rendering of a defeatured version of a new tool to be used for communication with potential partners.  The model is being 3D printed to have an easy to show version for demonstration.

Locking Ram
Locking Ram

This is a rendering of a marketing model of a patented oilfield tool that was designed from sketches and a wooden model.

Oilfield Ram
Oilfield Ram

This is a rendering of a marketing model of a patented oilfield tool that was designed from sketches and a wooden model.

In this rendering, parts are hidden and rendered in translucent materials to show inner workings.

Custom LED lighting device
Custom LED lighting device

The assembly was modelled to fit customer provided circuit board, battery, switches, and charging port with connection scheme created to allow easy installation and removal in the field.

LED light base plate
LED light base plate

Designed to retain battery and mount circuit board, switch and charging port in one component

Employee recognition award
Employee recognition award

Designed for a client based on a real product they sell.  These piece was modeled at actual scale, the logo was converted to 3d from a screen capture from their website.  The award is printed at roughly 4 x 5 x 6 inches in white ABS

Knoll office furniture scale model
Knoll office furniture scale model

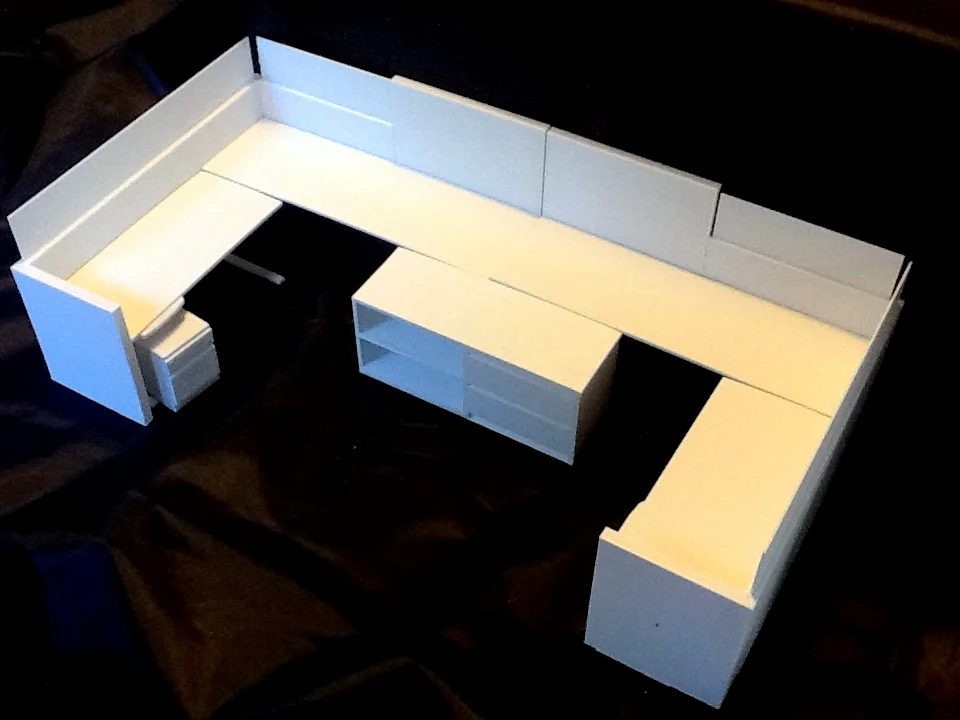

Scaled to have 4 inch tall walls, this model consists of wall sections, desks, drawer units, work surfaces and bookcase/lateral file credenza units.

LEd light assembly
LEd light assembly

The assembly was modelled to fit customer provided circuit board, battery, switches, and charging port with connection scheme created to allow easy installation and removal in the field.

Knoll Office Furniture, 4 in. tall scale model
Knoll Office Furniture, 4 in. tall scale model

This set up was printed in white ABS for a client making a proposal to a customer for a modular office setup using Knoll office furniture. The purpose of the models is for the end customer to be able to see the flexibility of the Knoll furniture.

Knoll office furniture scale models
Knoll office furniture scale models
Transducer enclosure
Transducer enclosure

Printed in White ABS, will hold a transducer and be mounted to a glass cover.

Transducer enclosure
Transducer enclosure

White ABS will be adhered to glass.

Heat exchanger scale model
Heat exchanger scale model

Rendering of scale model of round heat exchanger 3D printed for marketing/tradeshow use.

Round Heat Exchanger 3D Print
Round Heat Exchanger 3D Print

This is the printed 6" scale model of the CAD file.

U-Tube Heat Exchanger Scale Model
U-Tube Heat Exchanger Scale Model

Rendering of scale model of U-Tube heat exchanger 3D printed for marketing/tradeshow use.

U-Cooler Heat Exchanger 3D print
U-Cooler Heat Exchanger 3D print

This is the 6" scale model 3d printed from the CAD model we created.

Box heat exchanger tube set
Box heat exchanger tube set

Rendering of box heat exchanger showing only tubeset, nuts, and bolts.

Box Heat Exchanger Scale model
Box Heat Exchanger Scale model

Designed from a rough scan, photos, and pdfs of cad drawings. These models were designed at full scale and then 3D printed at a hand size scale. This is a rendering.

Box 2.JPG
Box Heat Exchanger 3D print
Box Heat Exchanger 3D print

This is 6" print of the cad model shown in the renderings.

Flat ended round htex 4.JPG
Model and scan mesh without tube bundle.JPG
U-tube vew 4.JPG
Faces
Faces

Scanned face printed in 1 inch squares for art piece.

Bison Skull
Bison Skull

We scanned a bison skull and then converted it to a 3d model and printed this scale model.

Custom Youth Soccer logo
Custom Youth Soccer logo

Created for a team event. these were printed in red and painted with team colors.

Sculptural bust
Sculptural bust

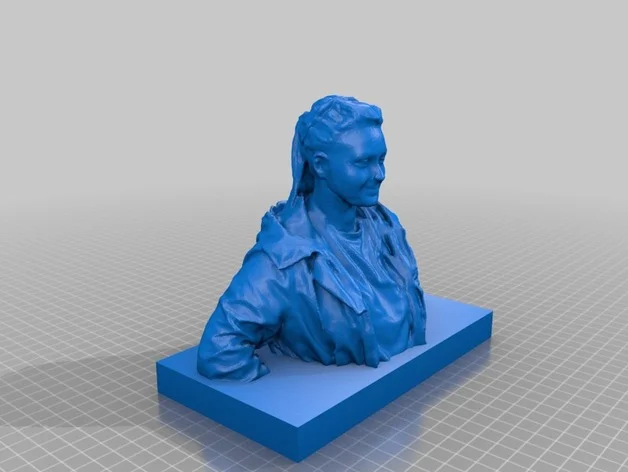

This was a scan that was done with a handheld 3d scanner. The 3D mesh was cleaned up and sculpted.  This is a rendering of the resulting file ready for printing.

Geological model rendered from point cloud
Geological model rendered from point cloud

Pre-print rendering of subsurface geological structures.

Geological structure model
Geological structure model

3d print of underground geological structures for Oil Services Company

Option 2 view 2.JPG
2D logo to 3D output
2D logo to 3D output

This logo was captured from the internet and quickly converted to a 3D model and printed.

3D print of Blizzard Entertainment logo
3D print of Blizzard Entertainment logo
Mounting base with design modifications.
Mounting base with design modifications.

This model was received from a client, evaluated, and design changes were suggested and made that made it more "printable".

Section of instrument body
Section of instrument body

This was a test print of a full scale model for a pipeline monitoring gauge.

3D printing of flexible material
3D printing of flexible material

The customer had the need for a flexible part.  E3 researched what was available and sourced the part in a flexible polymer.

Flex demonstration
Flex demonstration
Flex demonstration
Flex demonstration
Marketing scale model
Marketing scale model

This customers products are used with downhole tools that look like this. This model was designed and printed in 3D. The internal tube was made from PVC piping to save cost.

Marketing renderings
Marketing renderings

A customer for whom we printed physical models engaged us to produce 3D rendering showing situations where their product is used.  In this project we developed a part library of 3D models that can be mixed and matched to provide custom renderings.

Close up of marketing rendering
Close up of marketing rendering
Marketing rendering
Marketing rendering

Oil well screen

Marketing rendering of oil well screen
Marketing rendering of oil well screen
UDOO computer enclosure
UDOO computer enclosure

This was a design sourced from a public repository and printed for a customer. This approach save design time and cost.

Printed UDOO case
Printed UDOO case

Printed in white ABS fro a client.  This was an off the shelf design that was sourced for a client so there was no design cost.

Automatic animal feeder
Automatic animal feeder

This project consisted of about 17 components that were printed and had to meet tight tolerances to fit together the assembly.  Numerous challenges were addressed and overcome during this project.

Oversize parts were subdivided to print
Oversize parts were subdivided to print

While these parts were too large to print full size, we simply divided them into subcomponents for printing.

PLA body housing component
PLA body housing component

This is a rougly 11 x 6 x 6 inch part printed in black PLA.  It is part of the animal feeder.

Camera body samples
Camera body samples

Samples of video camera body for animal feeder.

Prototype parts for animal feeder
Prototype parts for animal feeder

Prototype mechanical parts printed for a client.  White parts are an auger and housing.

Bulb socket samples
Bulb socket samples

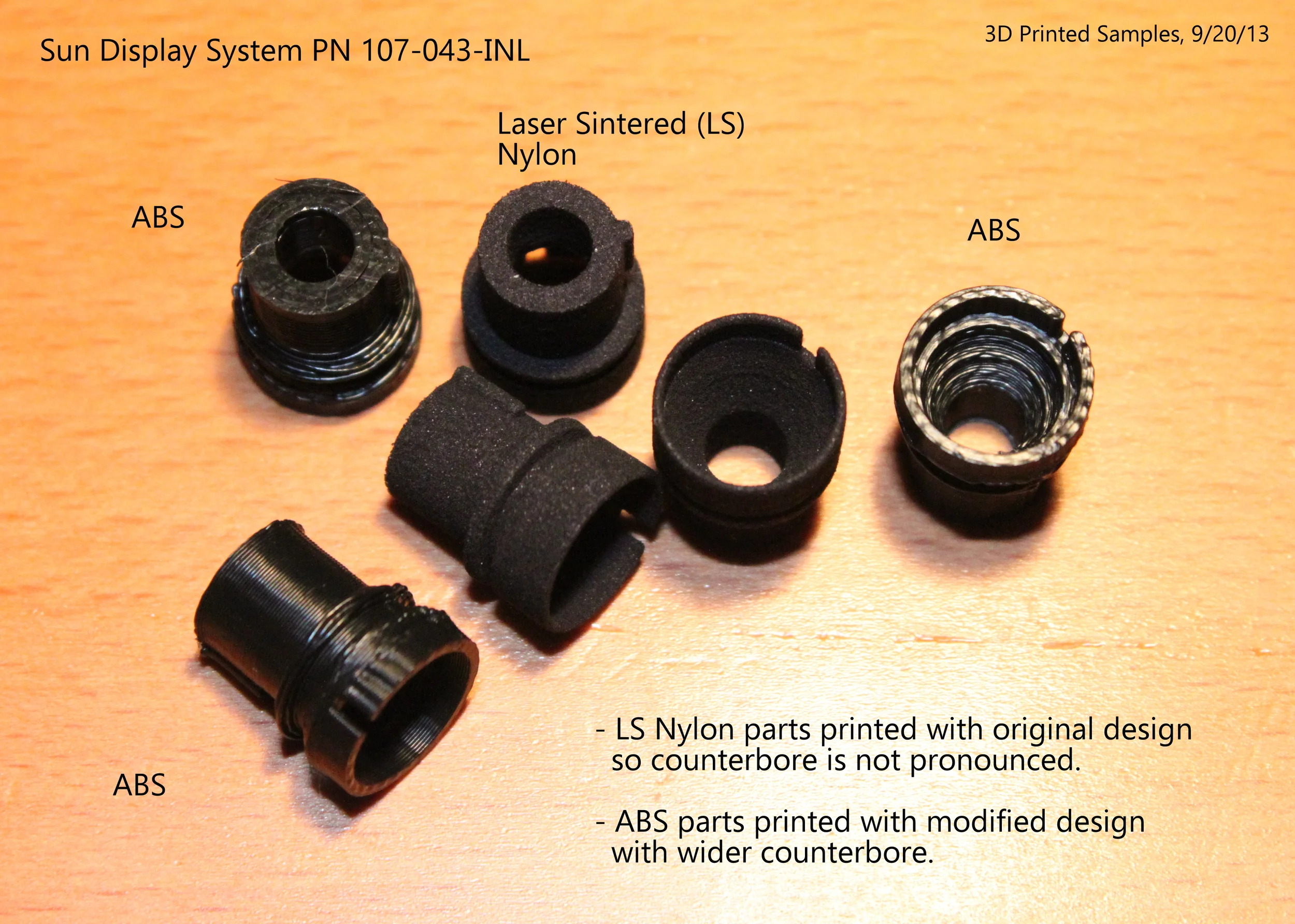

These parts were sampled in laser sintered plastic and an extruded plastic.

Lens printed in flexible plastic
Lens printed in flexible plastic

This lens was printed in a material that can significantly deformed and will immediately return to its original shape.
